Description

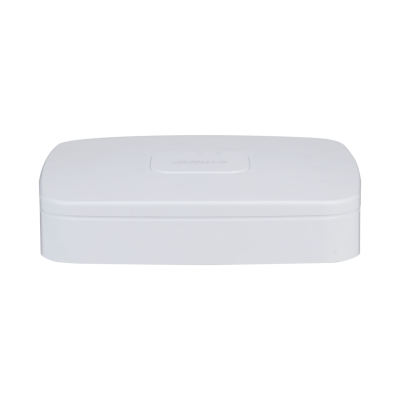

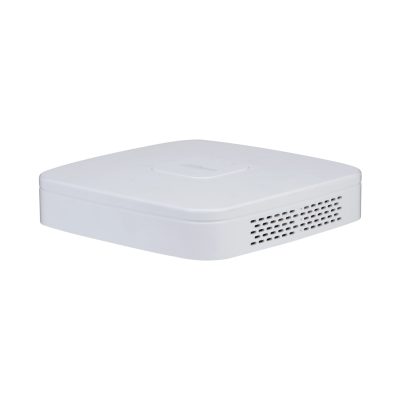

De DAHUA DHI-NVR2104-P-4KS3 is een compacte (1 U) en krachtige 4-kanaals 4K netwerkvideorecorder met geïntegreerde PoE-switch (4 poorten). Ideaal voor kleine tot middelgrote installaties zoals thuis, winkels, kantoren en scholen. Deze recorder ondersteunt één SATA-hardeschijf tot 16 TB voor lokale opslag
Specificaties:
-
Ondersteunt 4 IP-camera’s tot 12 MP resolutie
-
4 PoE-poorten (802.3af/at), max. 25,5 W per poort, totaal 36 W
-
Opnamebandbreedte tot 80 Mbps (invoer/uitvoer), doorvoer tot 60 Mbps
-
Videodecodering: tot 6× 1080p@30fps of 1× 12 MP stream
-
Videocompressie: Smart H.265+/H.265 en Smart H.264+/H.264
-

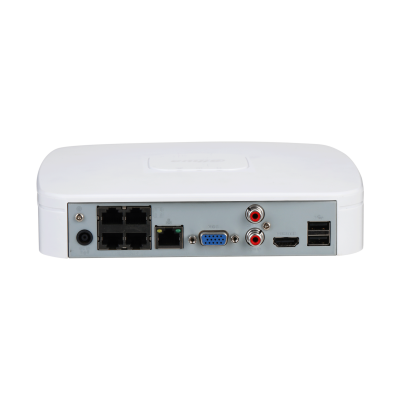

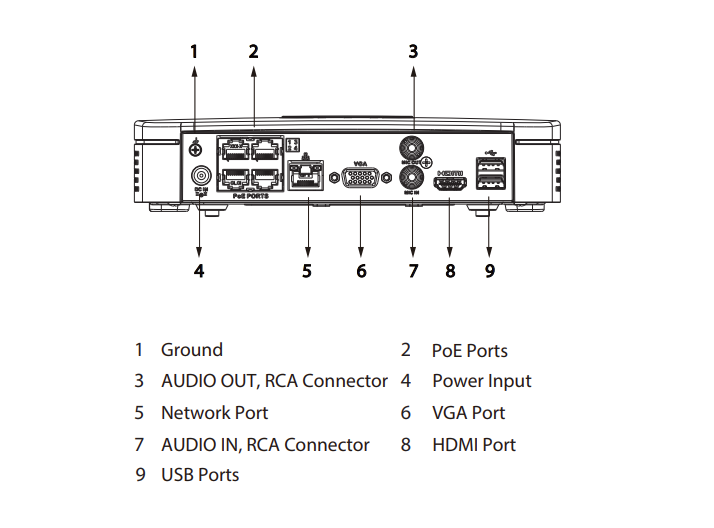

Video-uitgangen: 1× HDMI (max. 4K), 1× VGA (gelijktijdig)
-
Audio: 1 audio-in en 1 audio-uit, PCM, G.711A/U, G.726 codecs
-
AI-functies: Perimeter Protection, SMD Plus, AI Search
-
Opname modi: continu, schema, beweging, alarmgestuurd
-
Afspelen: tot 4 kanalen tegelijk, frame-by-frame, USB-backup
-
Netwerkprotocollen: HTTP/HTTPS, TCP/IP, RTSP, DHCP, DNS, SMTP, UPnP, DDNS, P2P, ONVIF
-
Mobiele toegang: DMSS-app voor Android/iOS, P2P-ondersteuning
-
Beheer: Webinterface, muis, afstandsbediening
-
Alarmmeldingen bij bewegingsdetectie, videoverlies, PIR, storingen, HDD-fouten, IP-conflicten, inlogvergrendeling
-
Processor: Embedded Linux
-
Netwerkpoort: 1× 10/100 Mbps
-
USB: 2× USB 2.0
-
Voeding: 48–53 V DC, max. 10 W exclusief HDD
-

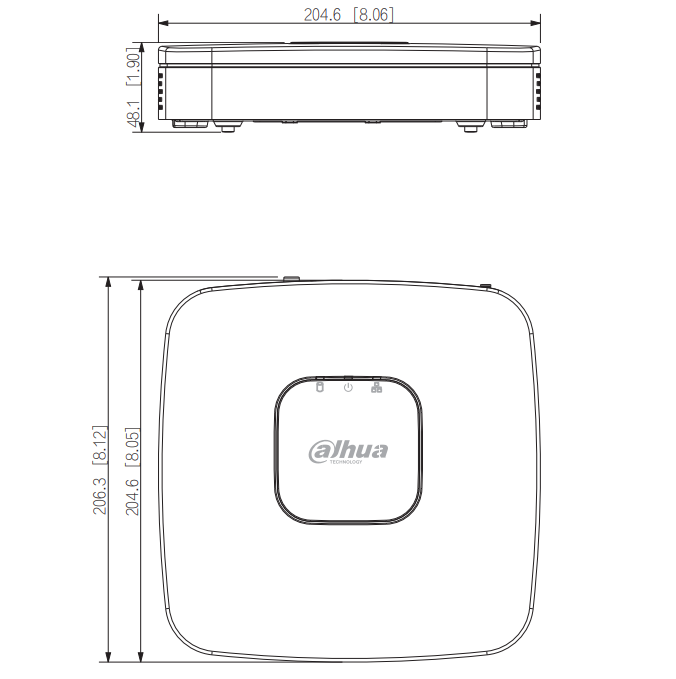

Afmetingen: 205 × 206 × 46 mm
-
Gewicht: circa 0,48 kg
-
Temperatuur: -10 °C tot +55 °C
-
Relatieve luchtvochtigheid: 10–93 %
