DHI-ARD1731-W2 Zwart, Draadloze PIR-Camera
Draadloze PIR detector met camera en infrarood verlichting.
Met de camera kun je de video van getriggerde alarmgebeurtenissen bekijken. Door de beelden in realtime weer te geven, kun je snel en nauwkeurig reageren op actuele alarmgebeurtenissen.
De PIR-detector stuurt hogeresolutiebeelden van de camera naar de alarmhub, die ze doorstuurt naar de mobiele app of de alarmcentrale (CMS/ARC).
Het apparaat maakt gebruik van RF-HD 2,4 GHz beeldtransmissietechnologie, die zorgt voor een snelle overdracht van maximaal 6 HD-beelden met een resolutie van 1600 x 1200 pixels binnen 10 seconden.
Het apparaat is ontworpen voor gebruik met draadloze toegangscontrolesystemen van Dahua die werken op de 868 MHz band.
Specificaties:
- Video
- Field of View - 88° (H);68° (V)
- Image Type - JPEG
- Resolution - 1600 × 1200; 1280 × 960; 640 × 480; 320 × 240
- Frame Rate - 2
- Illumination Mode - Infrared Light
- Illumination Range - 12 m (39.37 ft)
- Day/Night Switch - Color/Black & White
Function - Indicator Light - 1 × green alarm indicator
- Button - 1 × power switch
- Remote Update - Cloud update
- Low Battery Detection - Yes
- Battery Level Display - Yes
- Tamper - Tamper alarm
- Signal Strength - RF Signal test RF-HD signal test
Technical - Detection Mode - PIR
- Sensitivity - 3 levels adjustable
- Detection Range - 12 m (39.37 ft) (86°) with installation height of 2.2 m (7.22 ft)
- Detection Speed - 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
- Pet Immunity Level - ≤18 kg (39.68 lb)
- White Light Resistance Level - 2000 lux
- Two-way Digital Temperature Compensation - Yes
- Scenario - Indoor
- Operating Current - 65 μA
- Alarm Current : Day: 170 mA (Avg); 800 mA (Max) Night: 230 mA (Avg); 2.8 A (Max)
Wireless - Carrier Frequency - RF:868.0 MHz–868.6 MHz RF-HD:2.4GHz
- Communication Distance - RF:Up to 1,600 m (5,249.34 ft) in an open space RF-HD:Up to 300 m (984.25 ft) in an open space
Communication - Mechanism - Two-way
- Frequency - Hopping Yes
- Encryption Mode - AES128
General - Power Supply - CR123A*3
- Battery Life - 4 years (if triggered twice a week with a battery efficiency of 70%
- Operating Temperature - –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity - 10%–90% (RH)

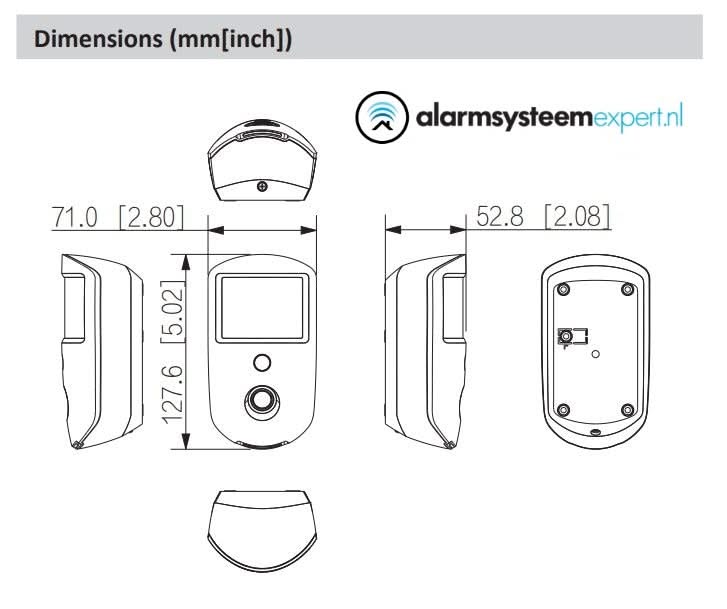

- Product Dimensions - 127.6 mm × 71.0 mm × 53.2 mm (5.02" × 2.80" × 2.09")
- Packaging Dimensions - 121.0 mm × 65.0 mm × 170.0 mm (4.76" × 2.56" × 6.69")
- Net Weight - 202 g (0.45 lb)
- Gross Weight - 333 g (0.73 lb)
- Installation - Wall mount
- Casing - PC + ABS
- Certifications CE
