Description
DHI-ARD1233-W2 Zwart, Draadloze PIR Detector
De DHI-ARD1233-W2 Zwart is een draadloze PIR bewegingsdetector voor het Dahua inbraakalarmsysteem, geschikt voor beveiligingstoepassingen binnenshuis. Het is uitgerust met een dubbele PIR-sensor die een bereik tot 12 m biedt met immuniteit voor dieren tot 18 kg. Het heeft instelbare gevoeligheid op 3 niveaus, bidirectionele digitale temperatuurcompensatie, waarschuwing voor bijna lege batterij, LED-indicator en sabotagebeveiliging.
Bovendien is de bewegingsdetector in staat om het temperatuurniveau te meten met een nauwkeurigheid van ±1°C in het bereik van -15°C tot +65°C. Het communiceert bidirectioneel over afstanden tot 1600 m in open ruimte, met behulp van de 868 MHz draadloze frequentie, met bescherming door AES128-codering en frequentiehopping. De stevige behuizing, gemaakt van hoogwaardig PC + ABS-materiaal, maakt gebruik mogelijk bij temperaturen tussen -10°C en +55°C, en is ontworpen voor binnentoepassingen. Het wordt aangedreven door een CR123A-batterij met een autonomie van maximaal 4 jaar.
Eigenschappen:
- Huisdierimmuniteitsfunctie.
- Automatische temperatuurcompensatie.
- Gevoeligheidsaanpassing op 3 niveaus.
- Signaalsterktedetectie.
- Alarm voor lage batterijspanning.
- Temperatuurbewaking.
- Frequency hopping-functie en tweerichtingscommunicatietechnologie zorgen voor communicatiestabiliteit.
- Cloudupdate en automatisch herstel na mislukte update.
Specificaties:
- Port
- Indicator Light - 1 × green alarm indicator
- Button - 1 × power button
Function - Tamper Alarm - Yes
- Remote Upgrade - Cloud update
- Search - Signal strength detection
- Test Mode - Yes
- Low Battery Alarm - Yes
Wireless - Carrier Frequency - 868.0 MHz–868.6 MHz
- Communication Distance - Up to 1,600 m (5,249.34 ft) in an open space
- Communication Mechanism - Two-way
- Encryption Mode - AES128
- Frequency Hopping - Yes
General - Power Supply - CR123A battery
- Power Consumption - Max. 120 mW
- Operating Temperature - –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity - 10%–90% (RH).

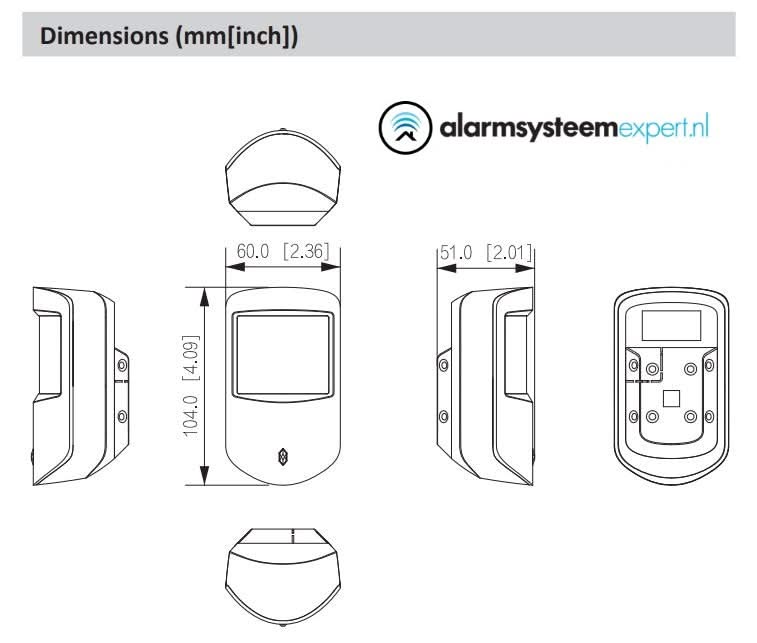

- Dimensions - 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97")(L × W × H)
- Package Dimensions - 135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)
- Installation Mode - Wall mount
- Net Weight - 100 g (0.22 lb)
- Gross Weight - 170 g (0.37 lb)
- Certifications - CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II - Battery Life - 4 years
- Casing - PC + ABS
- Temperature Measuring Range - –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
- Measuring Precision - ± 1 °C (± 33.8 °F)
- Resolution - 1 °C (33.8 °F)
- Detection Mode - PIR
- Sensor - Dual-element low-noise PIR sensor
- Detection Range - 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
- Detection Speed - 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
- Pet Immunity Level - ≤ 18 kg (39.68 lb)
- White Light Resistance Level - 2000 lx
- Two-way Digital Temperature Compensation - Yes, no attenuation of detection distance in high
temperature - Sensitivity - 3 levels adjustable
